Which LPR/ANPR cameras support the Wiegand \ OSDP 64bit format?

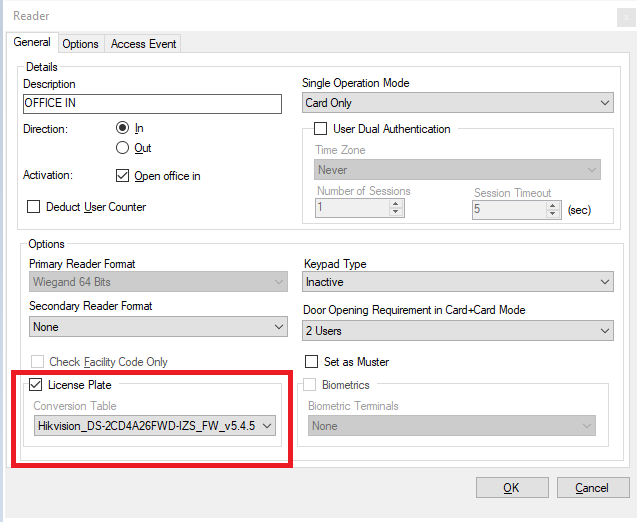

On AxTraxNG version 27.6.1.6 and above a special Wiegand 64bit protocol was added to support alphanumeric LPR/ANPR  conversion into standard Wiegand and display the credential as LPR/ANPR data on AxTraxNG.

On AxTraxPro 28.0.3.2 and above additional we added support to AVUTEC LPR cameras with updated conversion table, you can add the tabled following the attched do to any supported AxTraxNG or AxTraxPro version

The supported cameras models are:

AVUTEC



AVUTEC X-Series camera model (part numbers)	FW version that supports the conversion table attached	Remarks
Gatekeeper-1250X (GK_1250X3 and GK_1250X4)	CortexFramework V5137 or later	6 – 30 meters EU-ANPR range (Wiegand only)
Gatekeeper-410X (GK_410X3 and GK_410X4)	CortexFramework V5137 or later	2 – 12 meters EU-ANPR range (Wiegand only)
Module-X IR (GK_MX2 and GK_MX3)	CortexFramework V5137 or later	2 – 5 meters EU-ANPR range (also supports OSDP)

Hikvision

HIK DS-2CD7A46G0/P-IZHSY (2.8-12mm)

HIK iDS-2CD7A26G0/P-IZHSY(2.8-12mm)

Firmware version 5.8.40 (1)

The needed FW mentioned in the above section can be downloaded from http://u.pc.cd/hwj7

In a case where the camera is not updated to firmware 5.8.40 you must update the camera first to Hikvision standard firmware using the following firmware http://u.pc.cd/tNIrtalK

HIK DS-2CD7A26G0/P-IZHSWG (2.8-12mm)

HIK DS-2CD7A26G0/P-IZHSWG (8-32mm)

Firmware version V5.6.10 build 200414

The needed FW mentioned in the above section can be downloaded from  http://pc.cd/6RcctalK

HIK iDS-2CD7A26G0/P-IZHSY

Firmware version V5.5.130 build 210309

The needed FW mentioned in the above section can be downloaded from  http://u.pc.cd/YzhctalK
