Understanding AC-215/225/415 dip switches

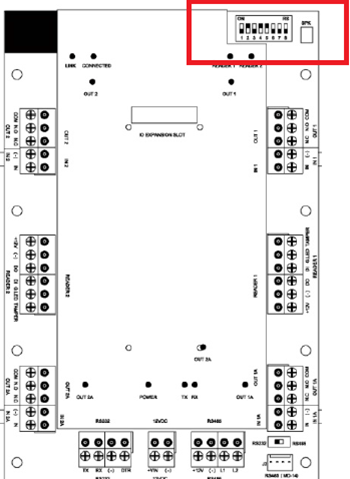

On each AC-215/225/425 control panel you will find a set of 8 dip switches in the upper right corner:

This Article will help you to understand the use of those Dip switches.

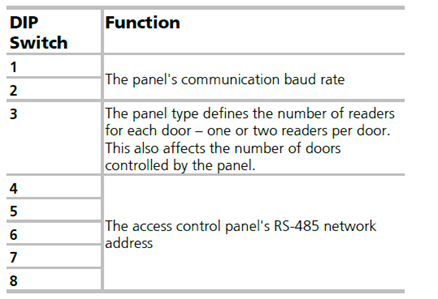

Dip Switch function

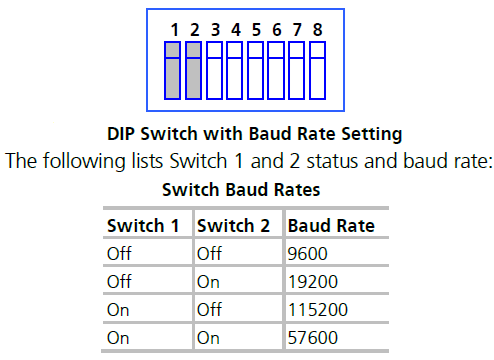

  Baud rate: defines the communication speed of Panel for connecting with a PC in a network connection.

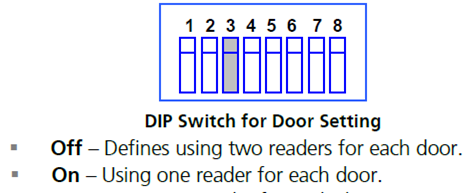

Access control Panel Type: 2 Reader or 1 reader per door.

  Panel addressing if connected in RS485 network. Below is example till 16 address, this is binary address value from 0 (1) till 31(32).
