How to install an AY-U9xxBT UHF-Smart long range reader

Installation of AY-U9xxBT UHF-Smart long range reader is important to get max range, by installing the reader in a correct angle. Below are some points to guide you regarding the correct location of the installation.

If the Barrier is wider than 6 meter, the reader needs to be installed on the middle of the Gate with L shape pole. L shape pole needs to be 4-meter height and need to be position in such a way that the reader will face the road in perpendicular.

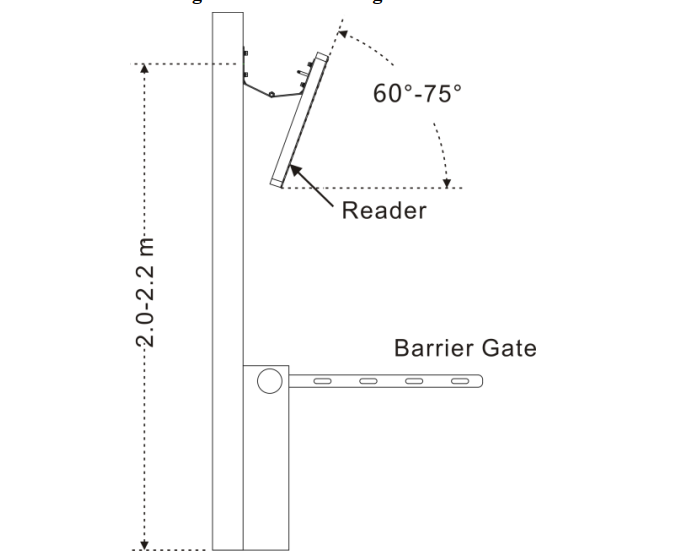

If the Barrier is less than 6 meters, then a straight pole of 3 meters can be used. The reader needs to be on a 2-meter height with a 20-degree angle to the earth.
It is recommended to put a speed breaker before the UHF reader to reduce the speed of the car.
From Reader to speed breaker 2-meter distance and from Reader to Barrier 1 Meter minimum distance.
Stainless steel mounting brackets are provided with Reader to mount on Pole.
Pole diameter suggested is 3-4 inches.
Below is the wiring for 1 Reader and 1 Barrier.
For Reader, AC supply needs to take till pole and need to give to the adapter which comes along with Reader. Not to extend the DC power supply. ( No Power drop).
No vehicle should park within 12 meters from a reader with UHF tag.

Attached you will find The AY-U920BT antenna angle testing diagram.
