AxTraxPro 28.1.1.3 and above Web Client access

On AxTraxPro 28.1.1.3 and above, we introduced a single port management for the Web Clients (Web client and Roles Management Client),

This is being managed by a local service on the AxTaxPro server machine named "AxTraxPro Gateway Service." It is crucial that this service is running to use the single port access.

Please note that there is no need to configure anything in the AxTraxPro = Configuration Tool under web

To access the web client locally on the server PC, you can use a secure (HTTPS) host by browsing to:

1. Web Client - localhost:8443/web

2. Roles Client - localhost:8443/roles

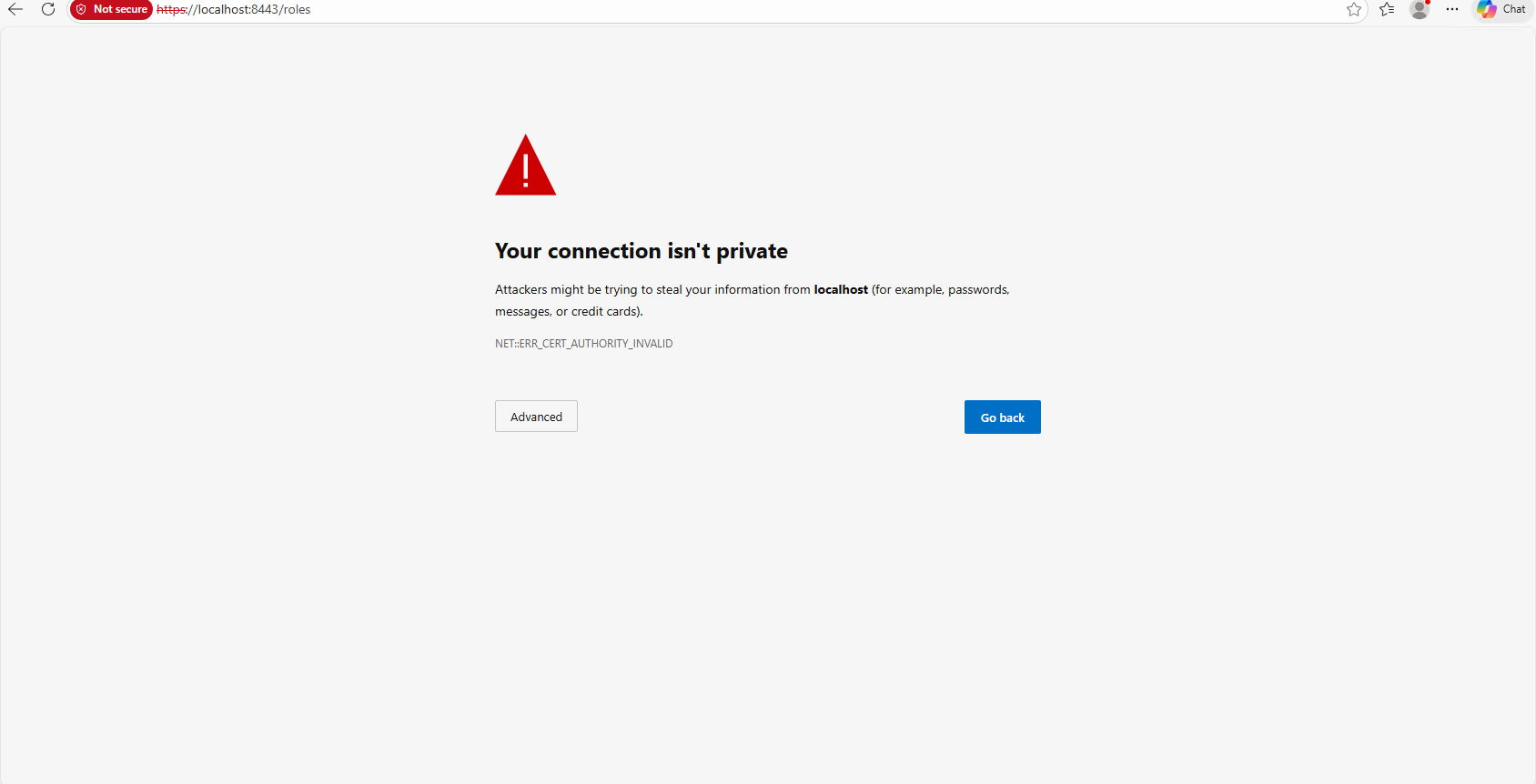

You might see the following message:

Click the advanced button:

Click Continue to localhost (unsafe). This will allow you to access the web client under HTTPS.

For accessing remotely from the netwerok use the following:

1. Web Client - http://AXTRAXPRO SERVER IP:9090/web

2. Roles Client - http://AXTRAXPRO SERVER IP:9090/roles


Replace the"AXTRAXPRO SERVER IP" with the server IP address.
